Steel sheet piles · Cold rolled

Same Strength.
Often 20% Less Steel Cost.

An equivalent alternative to hot-rolled — cut to your project’s exact length and profile. Cold-rolled steel sheet piles,
sourced and priced by an engineer who’ll tell you when it’s the smarter call — and when it isn’t.

Used on temporary works, retaining walls, cut-off walls and permanent structures across North and Latin America.

Request a Quote

Deep Excavation Software

Sound familiar?

If budget and schedule decide the job,
you know these too well.



“The budget came in over — and steel is the biggest line item.”

You don’t need to redesign the wall. You need the same section performance for less money.



“We only need it for temporary works — but we’re quoted permanent-grade pricing.”

You’re paying for capability the job doesn’t require.



“Standard lengths mean waste and field splicing.”

Off-the-shelf lengths force cut-off waste and extra welding on site. Time and steel down the drain.



“Is cheaper steel actually weaker?”

No. Specified to a matching section modulus and inertia, a cold-rolled wall carries the same load — same steel grade, same strength. What differs is interlock tightness, not capacity.



“Corrosion in seawater or aggressive soil — will it last?”

Without the right grade, a budget wall becomes a maintenance problem.



“One supplier for piles, another for accessories.”

Two POs, two lead times, and a coordination headache that’s yours to own.

You’re not overpaying for steel. You’re overpaying for the wrong spec. Specify it right and the same wall costs less.

Cold-rolled sheet piles

Cold-Rolled Sheet Piles

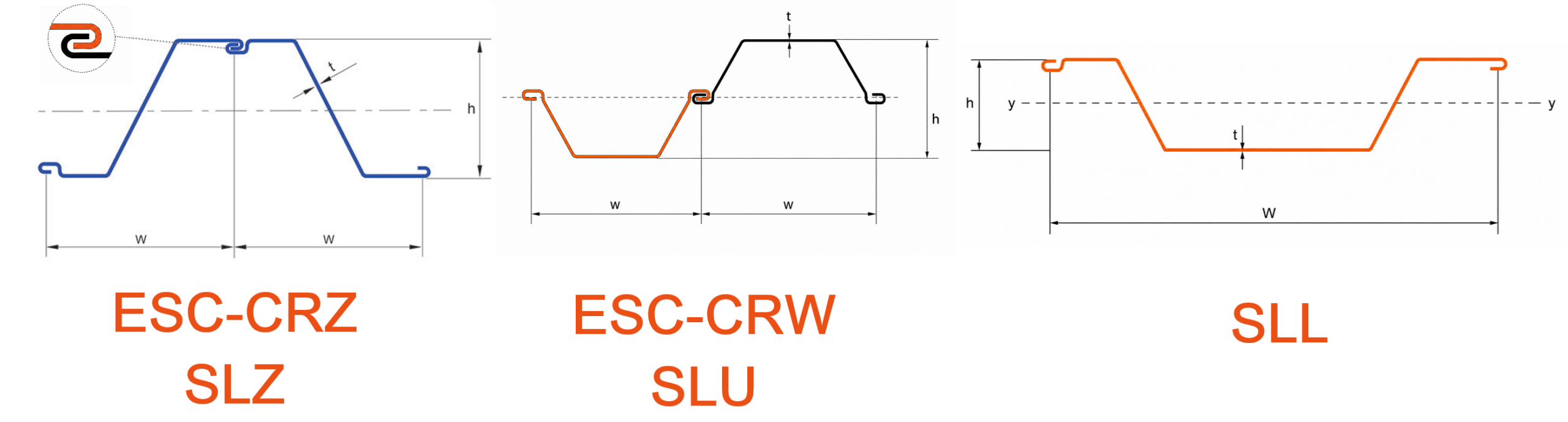

A wide range of Z, U profiles – produced in the US or outside of the US.

Cold-Rolled Sheet Pile Tables — Geo Civil Consulting

Steel sheet piles · Cold rolled

Cold-Rolled Profile Data

Section properties for the full cold-rolled range — 105 Z-profiles (SLZ), 123 U-profiles (SLU), 81 Omega/straight profiles (SLL), 42 ESC-CRZ Z-profiles and 35 ESC-CRW profiles. Use the tabs to switch families and the search box to jump to a section.

SECTION	WIDTH (w)	HEIGHT (h)	THICKNESS (t)	CROSS SECTIONAL AREA	WEIGHT — Per Pile	WEIGHT — Per Wall	MOMENT OF INERTIA	SECTION MODULUS
	in	in	in	in2/ft	lb/ft	lb/ft2	in4/ft	in3/ft
	mm	mm	mm	cm2/m	kg/m	kg/m2	cm4/m	cm3/m
SLZ11-1	22.64	10.24	0.335	6.08	39.04	20.69	101.49	19.83
SLZ11-1	575	260	8.5	128.7	58.1	101	13,860	1066
SLZ11-2	22.64	10.24	0.374	6.56	42.47	22.32	106.64	20.83
SLZ11-2	575	260	9.5	138.9	63.2	109	14,563	1120
SLZ12-1	26.38	11.89	0.335	5.96	44.42	20.28	137.13	23.05
SLZ12-1	670	302	8.5	126.1	66.1	99	18,726	1239
SLZ12-2	30.31	13.54	0.335	5.67	48.78	19.29	164.13	24.22
SLZ12-2	770	344	8.5	120.0	72.6	94.2	22,413	1302
SLZ12-3	22.64	10.24	0.394	7.37	47.31	25.07	116.03	22.64
SLZ12-3	575	260	10	155.9	70.4	122.4	15,845	1217
SLZ12-4	27.56	12.36	0.335	5.8	45.29	19.72	138.32	22.36
SLZ12-4	700	314	8.5	122.7	67.4	96.3	18,889	1202
SLZ13-1	26.38	11.93	0.374	6.47	48.38	22.02	141.92	23.79
SLZ13-1	670	303	9.5	136.9	72	107.5	19,381	1279
SLZ13-2	30.31	13.54	0.354	5.91	50.8	20.09	165.34	24.4
SLZ13-2	770	344	9	125.0	75.6	98.1	22,579	1312
SLZ13-3	22.64	10.24	0.413	7.61	48.78	25.89	121.12	23.66
SLZ13-3	575	260	10.5	161.0	72.6	126.4	16,540	1272
SLZ13-4	27.56	12.4	0.374	6.36	49.73	21.65	150.39	24.24
SLZ13-4	700	315	9.5	134.6	74	105.7	20,537	1303
SLZ13-5	27.56	12.44	0.394	6.63	51.88	22.57	156.86	25.2
SLZ13-5	700	316	10	140.4	77.2	110.2	21,420	1355
SLZ13-6	25.59	13.78	0.315	5.65	40.99	19.21	166.95	24.24
SLZ13-6	650	350	8	119.5	61	93.8	22,799	1303
SLZ14-1	26.38	11.97	0.413	7.26	54.3	24.7	155.39	25.95
SLZ14-1	670	304	10.5	153.6	80.8	120.6	21,220	1395
SLZ14-2	30.31	13.58	0.374	6.19	53.29	21.08	171.33	25.2
SLZ14-2	770	345	9.5	131.1	79.3	102.9	23,396	1355
SLZ14-3	30.31	13.58	0.394	6.48	55.71	22.06	178.05	26.21
SLZ14-3	770	345	10	137.2	82.9	107.7	24,315	1409
SLZ14-4	27.56	12.44	0.406	6.9	53.96	23.49	162.99	26.17
SLZ14-4	700	316	10.3	146.1	80.3	114.7	22,258	1407
SLZ15-1	27.56	16.54	0.276	5.16	40.32	17.55	227.65	27.53
SLZ15-1	700	420	7	109.2	60	85.7	31,087	1480
SLZ15-2	27.56	17.72	0.276	5.12	40.05	17.43	243.14	27.43
SLZ15-2	700	450	7	108.4	59.6	85.1	33,203	1475
SLZ16-1	22.64	13.78	0.335	6.69	42.94	22.78	205.11	29.76
SLZ16-1	575	350	8.5	141.7	63.9	111.2	28,009	1600
SLZ16-2	25.2	15.75	0.315	6.02	43.01	20.48	237.41	30.13
SLZ16-2	640	400	8	127.4	64	100	32,421	1620
SLZ17-1	24.8	14.92	0.335	6.48	45.56	22.04	231.34	30.99
SLZ17-1	630	379	8.5	137.1	67.8	107.6	31,592	1666
SLZ17-2	27.56	16.54	0.335	6.28	49.12	21.38	271.93	32.87
SLZ17-2	700	420	8.5	133.0	73.1	104.4	37,135	1767
SLZ17-3	22.64	13.78	0.354	6.99	44.89	23.8	212.66	30.86
SLZ17-3	575	350	9	148.0	66.8	116.2	29,040	1659
SLZ17-4	22.64	14.57	0.354	7.01	45.02	23.86	232.85	31.95
SLZ17-4	575	370	9	148.4	67	116.5	31,798	1718
SLZ17-5	22.64	13.78	0.374	7.38	47.37	25.11	218.19	31.66
SLZ17-5	575	350	9.5	156.2	70.5	122.6	29,796	1702
SLZ17-6	26.57	16.93	0.335	6.28	47.37	21.38	269.63	31.84
SLZ17-6	675	430	8.5	133.0	70.5	104.4	36,820	1712
SLZ18-1	24.8	14.96	0.374	7.11	49.99	24.19	250.59	33.5
SLZ18-1	630	380	9.5	150.4	74.4	118.1	34,220	1801
SLZ18-2	27.56	16.54	0.354	6.58	51.41	22.39	278.2	33.63
SLZ18-2	700	420	9	139.2	76.5	109.3	37,991	1808
SLZ18-3	22.64	13.78	0.386	7.56	48.58	25.75	226.73	32.87
SLZ18-3	575	350	9.8	160.1	72.3	125.7	30,962	1767
SLZ18-4	22.64	13.78	0.394	7.72	49.59	26.28	231.24	33.55
SLZ18-4	575	350	10	163.4	73.8	128.3	31,578	1804
SLZ18-5	26.57	16.54	0.354	6.67	50.26	22.69	278.19	33.63
SLZ18-5	675	420	9	141.1	74.8	110.8	37,990	1808
SLZ18-6	24.8	15	0.39	7.43	52.28	25.27	261.58	34.86
SLZ18-6	630	381	9.9	157.2	77.8	123.4	35,721	1874
SLZ18-7	27.56	17.32	0.354	6.66	52.01	22.65	304.54	35.15
SLZ18-7	700	440	9	140.9	77.4	110.6	41,587	1890
SLZ19-1	24.8	15	0.402	7.74	54.43	26.34	262.18	34.95
SLZ19-1	630	381	10.2	163.8	81	128.6	35,803	1879
SLZ19-2	27.56	16.57	0.374	6.88	53.76	23.41	289.93	34.97
SLZ19-2	700	421	9.5	145.6	80	114.3	39,592	1880
SLZ19-3	26.57	15.35	0.394	7.4	55.77	25.17	274.42	35.73
SLZ19-3	675	390	10	156.6	83	122.9	37,475	1921
SLZ20-1	27.56	16.57	0.39	7.18	56.11	24.43	300.46	36.23
SLZ20-1	700	421	9.9	152.0	83.5	119.3	41,031	1948
SLZ21-1	22.64	13.78	0.433	8.94	57.39	30.42	268.24	38.93
SLZ21-1	575	350	11	189.2	85.4	148.5	36,631	2093
SLZ22-1	22.64	13.78	0.453	9.41	60.41	32.01	277.63	40.29
SLZ22-1	575	350	11.5	199.1	89.9	156.3	37,913	2166
SLZ23-1	22.64	13.78	0.472	9.85	63.23	33.51	289.47	42
SLZ23-1	575	350	12	208.4	94.1	163.6	39,530	2258
SLZ24-1	27.56	17.68	0.413	8.14	63.64	27.71	404.63	45.76
SLZ24-1	700	449	10.5	172.4	94.7	135.3	55,256	2460
SLZ24-2	22.64	13.78	0.492	10.37	66.59	35.29	304.32	44.16
SLZ24-2	575	350	12.5	219.5	99.1	172.3	41,558	2374
SLZ24-3	27.56	18.9	0.394	7.71	60.28	26.26	431.4	45.64
SLZ24-3	700	480	10	163.3	89.7	128.2	58,912	2454
SLZ24-4	27.56	21.26	0.374	7.4	57.86	25.19	486.58	45.76
SLZ24-4	700	540	9.5	156.7	86.1	123	66,447	2460
SLZ25-1	24.8	17.32	0.413	8.54	60.07	29.06	400.93	46.28
SLZ25-1	630	440	10.5	180.8	89.4	141.9	54,750	2488
SLZ25-2	26.57	17.32	0.433	8.66	65.32	29.49	406.42	46.91
SLZ25-2	675	440	11	183.4	97.2	144	55,500	2522
SLZ25-3	22.64	13.78	0.512	10.74	68.94	36.56	318.24	46.17
SLZ25-3	575	350	13	227.4	102.6	178.5	43,459	2482
SLZ26-1	24.8	18.5	0.453	9.34	65.72	31.79	463.67	50.13
SLZ26-1	630	470	11.5	197.7	97.8	155.2	63,318	2695
SLZ26-2	27.56	18.11	0.453	8.85	69.15	30.11	438.54	48.42
SLZ26-2	700	460	11.5	187.3	102.9	147	59,887	2603
SLZ26-3	26.57	16.93	0.472	9.41	70.89	32.01	410.25	48.45
SLZ26-3	675	430	12	199.1	105.5	156.3	56,023	2605
SLZ26-4	27.56	19.69	0.394	7.9	61.75	26.89	478.34	48.58
SLZ26-4	700	500	10	167.3	91.9	131.3	65,322	2612
SLZ26-5	27.56	18.5	0.413	8.33	65.11	28.35	454.36	49.1
SLZ26-5	700	470	10.5	176.3	96.9	138.4	62,047	2640
SLZ27-1	26.57	18.11	0.472	9.46	71.3	32.2	456.48	50.39
SLZ27-1	675	460	12	200.3	106.1	157.2	62,336	2709
SLZ27-2	24.8	18.9	0.413	8.74	61.49	29.74	478.76	50.65
SLZ27-2	630	480	10.5	185.0	91.5	145.2	65,379	2723
SLZ28-1	24.8	17.32	0.492	10.09	71.03	34.35	443.92	51.22
SLZ28-1	630	440	12.5	213.6	105.7	167.7	60,621	2754
SLZ28-2	27.56	18.15	0.52	10.14	79.29	34.51	479.92	51.24
SLZ28-2	700	461	13.2	214.6	118	168.5	65,537	2755
SLZ28-3	27.56	18.15	0.472	9.45	73.92	32.18	475.26	52.36
SLZ28-3	700	461	12	200.1	110	157.1	64,901	2815
SLZ28-4	27.56	19.69	0.441	8.91	69.62	30.31	512.64	52.08
SLZ28-4	700	500	11.2	188.5	103.6	148	70,005	2800
SLZ28-5	27.56	18.9	0.453	8.95	69.95	30.46	494.31	52.3
SLZ28-5	700	480	11.5	189.4	104.1	148.7	67,502	2812
SLZ28-6	27.56	18.94	0.433	8.72	68.14	29.66	487.31	51.45
SLZ28-6	700	481	11	184.5	101.4	144.8	66,546	2766
SLZ32-1	26.57	19.09	0.472	10.02	75.53	34.1	571.07	59.8
SLZ32-1	675	485	12	212.1	112.4	166.5	77,985	3215
SLZ34-1	26.57	19.69	0.472	10.2	76.87	34.72	621.45	63.13
SLZ34-1	675	500	12	215.9	114.4	169.5	84,865	3394
SLZ35-1	26.57	19.69	0.492	10.6	79.9	36.07	642.1	65.21
SLZ35-1	675	500	12.5	224.3	118.9	176.1	87,685	3506
SLZ36-1	26.57	19.09	0.512	11.06	83.39	37.65	642.84	67.33
SLZ36-1	675	485	13	234.1	124.1	183.8	87,785	3620
SLZ36-2	27.56	21.26	0.48	10.2	79.7	34.72	713.61	67.13
SLZ36-2	700	540	12.2	215.9	118.6	169.5	97,450	3609
SLZ36-3	24.8	19.29	0.492	11.13	78.28	37.87	646.6	67.03
SLZ36-3	630	490	12.5	235.5	116.5	184.9	88,299	3604
SLZ37-1	27.56	19.69	0.512	10.95	85.61	37.28	677.82	68.86
SLZ37-1	700	500	13	231.8	127.4	182	92,562	3702
SLZ37-2	26.57	19.09	0.531	11.46	86.35	39	658.76	68.99
SLZ37-2	675	485	13.5	242.5	128.5	190.4	89,960	3709
SLZ38-1	26.57	19.09	0.551	11.8	88.97	40.16	673.62	70.55
SLZ38-1	675	485	14	249.8	132.4	196.1	91,989	3793
SLZ38-2	27.56	22.44	0.512	10.87	84.94	36.99	799.51	71.24
SLZ38-2	700	570	13	230.1	126.4	180.6	109,180	3830
SLZ39-1	27.56	22.05	0.531	11.33	88.57	38.57	806.83	73.19
SLZ39-1	700	560	13.5	239.9	131.8	188.3	110,180	3935
SLZ40-1	27.56	21.65	0.543	11.54	90.18	39.26	805.71	74.4
SLZ40-1	700	550	13.8	244.2	134.2	191.7	110,027	4000
SLZ41-1	27.56	21.26	0.551	11.9	93	40.49	816.35	76.78
SLZ41-1	700	540	14	251.8	138.4	197.7	111,480	4128
SLZ42-1	27.56	21.65	0.551	11.96	93.47	40.7	847.6	78.29
SLZ42-1	700	550	14	253.1	139.1	198.7	115,747	4209
SLZ42-2	27.56	21.65	0.559	12.22	95.49	41.6	846.96	78.21
SLZ42-2	700	550	14.2	258.7	142.1	203.1	115,660	4205
SLZ43-1	27.56	22.05	0.551	12	93.74	40.82	877.59	79.61
SLZ43-1	700	560	14	253.9	139.5	199.3	119,843	4280
SLZ43-2	27.56	22.05	0.531	11.74	91.72	39.94	885.16	80.28
SLZ43-2	700	560	13.5	248.4	136.5	195	120,877	4316
SLZ44-1	27.56	21.26	0.571	12.82	100.19	43.63	871.38	81.9
SLZ44-1	700	540	14.5	271.3	149.1	213	118,995	4403
SLZ44-2	27.56	21.65	0.551	12.14	94.88	41.31	886.73	81.9
SLZ44-2	700	550	14	256.9	141.2	201.7	121,091	4403
SLZ46-1	22.83	21.26	0.559	13.76	89.1	46.82	913.22	85.89
SLZ46-1	580	540	14.2	291.2	132.6	228.6	124,708	4618
SLZ46-2	27.56	20.67	0.598	13.56	105.97	46.15	887.83	85.86
SLZ46-2	700	525	15.2	287.0	157.7	225.3	121,241	4616
SLZ46-3	27.56	22.05	0.591	13.28	103.75	45.18	949.12	86.08
SLZ46-3	700	560	15	281.0	154.4	220.6	129,611	4628
SLZ46-4	27.56	23.62	0.551	12.2	95.35	41.52	1012.62	85.73
SLZ46-4	700	600	14	258.2	141.9	202.7	138,283	4609
SLZ48-1	22.83	22.44	0.591	14.49	93.81	49.3	1004.94	89.54
SLZ48-1	580	570	15	306.6	139.6	240.7	137,234	4814
SLZ48-2	22.83	21.26	0.571	14.38	93.13	48.93	953.93	89.63
SLZ48-2	580	540	14.5	304.3	138.6	238.9	130,267	4819
SLZ48-3	27.56	21.65	0.598	13.63	106.51	46.37	967.98	89.37
SLZ48-3	700	550	15.2	288.4	158.5	226.4	132,187	4805
SLZ50-1	22.83	22.83	0.63	15.22	98.58	51.8	1066.62	93.41
SLZ50-1	580	580	16	322.2	146.7	252.9	145,656	5022
SLZ50-2	22.83	20.87	0.61	14.97	96.97	50.96	972.06	93.15
SLZ50-2	580	530	15.5	316.9	144.3	248.8	132,744	5008
SLZ50-3	27.56	20.87	0.63	14.29	111.75	48.64	977.34	93.67
SLZ50-3	700	530	16	302.5	166.3	237.5	133,465	5036
SLZ50-4	27.56	22.05	0.63	14.1	110.2	47.99	1029.43	93.37
SLZ50-4	700	560	16	298.5	164	234.3	140,578	5020
SLZ50-5	22.83	20.47	0.591	15.23	98.58	51.82	979.13	95.64
SLZ50-5	580	520	15	322.3	146.7	253	133,709	5142
SLZ52-1	27.56	21.65	0.63	14.42	112.69	49.07	1052.6	97.2
SLZ52-1	700	550	16	305.2	167.7	239.6	143,742	5226
SLZ18-800	31.5	19.69	0.335	6	53.69	20.44	340.32	34.56
SLZ18-800	800	500	8.5	127.1	79.9	99.8	46,474	1858
SLZ20-800	31.5	19.29	0.374	6.67	59.6	22.69	359.01	37.22
SLZ20-800	800	490	9.5	141.1	88.7	110.8	49,026	2001
SLZ22-800	31.5	19.69	0.394	7.07	63.17	24.07	396.47	40.27
SLZ22-800	800	500	10	149.7	94	117.5	54,142	2165
SLZ23-800	31.5	20.87	0.374	6.95	62.09	23.66	452.63	43.38
SLZ23-800	800	530	9.5	147.1	92.4	115.5	61,811	2332
SLZ25-800	31.5	20.47	0.413	7.71	68.94	26.22	476.42	46.52
SLZ25-800	800	520	10.5	163.1	102.6	128	65,060	2501
SLZ27-800	31.5	20.47	0.453	8.32	74.32	28.31	508.34	49.66
SLZ27-800	800	520	11.5	176.1	110.6	138.2	69,419	2670
SLZ28-750	29.53	22.05	0.394	7.81	65.45	26.59	576.89	52.32
SLZ28-750	750	560	10	165.4	97.4	129.8	78,780	2813
SLZ30-750	29.53	21.65	0.441	8.66	72.51	29.45	605.9	55.95
SLZ30-750	750	550	11.2	183.2	107.9	143.8	82,741	3008
SLZ32-750	29.53	22.05	0.472	9.32	78.02	31.71	656.79	59.56
SLZ32-750	750	560	12	197.2	116.1	154.8	89,690	3202
SLZ23-750	29.53	20.87	0.374	7.11	59.6	24.21	451.39	43.26
SLZ23-750	750	530	9.5	150.6	88.7	118.2	61,642	2326
SLZ23-700	27.56	20.87	0.374	7.29	57.05	24.82	449.99	43.11
SLZ23-700	700	530	9.5	154.4	84.9	121.2	61,450	2318
SLZ25-750	29.53	20.47	0.413	7.91	66.19	26.91	474.92	46.39
SLZ25-750	750	520	10.5	167.4	98.5	131.4	64,854	2494
SLZ25-700	27.56	20.47	0.413	8.12	63.5	27.63	473.19	46.22
SLZ25-700	700	520	10.5	171.8	94.5	134.9	64,618	2485
No profiles match your search.

SECTION	WIDTH (w)	HEIGHT (h)	THICKNESS (t)	CROSS SECTIONAL AREA	WEIGHT — Per Pile	WEIGHT — Per Wall	MOMENT OF INERTIA	SECTION MODULUS
	in	in	in	in2/ft	lb/ft	lb/ft2	in4/ft	in3/ft
	mm	mm	mm	cm2/m	kg/m	kg/m2	cm4/m	cm3/m
SLU5-1	23.62	5.91	0.335	5.66	37.9	19.25	27.83	9.45
SLU5-1	600	150	8.5	119.7	56.4	94	3,800	508
SLU5-2	23.62	5.91	0.374	6.41	42.94	21.81	30.48	10.3
SLU5-2	600	150	9.5	135.7	63.9	106.5	4,162	554
SLU5-3	15.75	8.27	0.236	4.94	22.04	16.79	41.16	9.95
SLU5-3	400	210	6	104.5	32.8	82	5,621	535
SLU6-1	23.62	7.09	0.335	5.91	39.58	20.11	40.01	11.27
SLU6-1	600	180	8.5	125.1	58.9	98.2	5,464	606
SLU6-2	23.62	11.02	0.236	4.23	28.36	14.4	66.18	12
SLU6-2	600	280	6	89.6	42.2	70.3	9,038	645
SLU6-3	23.62	12.17	0.236	4.2	28.16	14.32	73.27	12.03
SLU6-3	600	309	6	89.0	41.9	69.9	10,005	647
SLU7-1	23.62	11.81	0.236	4.39	29.37	14.93	76.95	13.02
SLU7-1	600	300	6	92.9	43.7	72.9	10,508	700
SLU7-2	23.62	13.39	0.236	4.49	30.04	15.28	97.2	14.51
SLU7-2	600	340	6	95.0	44.7	74.6	13,273	780
SLU7-3	23.62	12.2	0.252	4.42	29.63	15.05	77.18	12.65
SLU7-3	600	310	6.4	93.6	44.1	73.5	10,539	680
SLU7-4	23.62	12.6	0.256	4.64	31.11	15.79	86.94	13.78
SLU7-4	600	320	6.5	98.2	46.3	77.1	11,872	741
SLU7-5	23.62	12.8	0.256	4.76	31.72	16.2	113.8	14.34
SLU7-5	600	325	6.5	100.8	47.2	79.1	15,540	771
SLU8-1	23.62	14.17	0.236	4.54	30.37	15.44	108	15.23
SLU8-1	600	360	6	96.1	45.2	75.4	14,749	819
SLU8-2	23.62	13.39	0.256	4.83	32.32	16.43	109.02	16.27
SLU8-2	600	340	6.5	102.2	48.1	80.2	14,888	875
SLU8-3	23.62	12.8	0.276	5.19	34.81	17.68	104.41	16.29
SLU8-3	600	325	7	109.9	51.8	86.3	14,258	876
SLU8-4	29.53	12.6	0.236	4.11	34.47	14.01	95.38	15.12
SLU8-4	750	320	6	87.1	51.3	68.4	13,025	813
SLU8-5	23.62	12.6	0.276	4.87	32.59	16.57	90.35	14.32
SLU8-5	600	320	7	103.1	48.5	80.9	12,338	770
SLU8-6	23.62	12.8	0.287	5.09	34.14	17.33	97.8	15.27
SLU8-6	600	325	7.3	107.8	50.8	84.6	13,355	821
SLU9-1	23.62	14.17	0.256	4.97	33.26	16.9	127.12	17.93
SLU9-1	600	360	6.5	105.1	49.5	82.5	17,360	964
SLU9-2	23.62	12.99	0.295	5.47	36.62	18.62	112.13	17.24
SLU9-2	600	330	7.5	115.8	54.5	90.9	15,313	927
SLU9-3	29.53	12.6	0.276	4.81	40.25	16.36	106.23	16.85
SLU9-3	750	320	7	101.8	59.9	79.9	14,507	906
SLU9-4	23.62	13.98	0.276	5.28	35.35	17.96	123.19	17.61
SLU9-4	600	355	7	111.7	52.6	87.7	16,823	947
SLU10-1	23.62	11.81	0.276	5.4	36.22	18.39	139.71	19.18
SLU10-1	600	300	7	114.4	53.9	89.8	19,078	1031
SLU10-2	23.62	12.2	0.354	6.69	44.82	22.78	117.58	19.25
SLU10-2	600	310	9	141.7	66.7	111.2	16,056	1035
SLU11-1	23.62	14.96	0.295	5.83	39.04	19.83	163.39	21.84
SLU11-1	600	380	7.5	123.3	58.1	96.8	22,313	1174
SLU11-2	23.62	14.17	0.315	6.22	41.66	21.16	147.15	20.74
SLU11-2	600	360	8	131.6	62	103.3	20,095	1115
SLU11-3	23.62	15.75	0.276	5.55	37.16	18.88	173.67	22.04
SLU11-3	600	400	7	117.5	55.3	92.2	23,716	1185
SLU11-4	22.64	14.17	0.315	6.32	40.59	21.51	145.65	20.53
SLU11-4	575	360	8	133.8	60.4	105	19,890	1104
SLU11-5	23.62	12.2	0.374	7.03	47.11	23.92	125.66	20.57
SLU11-5	600	310	9.5	148.8	70.1	116.8	17,160	1106
SLU12-1	23.62	14.96	0.335	6.63	44.42	22.57	167.96	22.43
SLU12-1	600	380	8.5	140.4	66.1	110.2	22,936	1206
SLU12-2	19.69	14.17	0.315	6.8	37.97	23.14	151.59	21.39
SLU12-2	500	360	8	143.9	56.5	113	20,701	1150
SLU12-3	27.56	17.32	0.295	5.47	43.14	18.62	197.56	22.78
SLU12-3	700	440	7.5	115.8	64.2	90.9	26,978	1225
SLU12-4	23.62	14.17	0.354	6.98	46.77	23.76	166.01	23.42
SLU12-4	600	360	9	147.8	69.6	116	22,670	1259
SLU12-5	17.72	14.17	0.374	8.6	43.21	29.27	182.56	25.74
SLU12-5	450	360	9.5	182.0	64.3	142.9	24,930	1384
SLU12-6	23.62	14.17	0.335	6.63	44.42	22.57	158.17	22.32
SLU12-6	600	360	8.5	140.4	66.1	110.2	21,600	1200
SLU13-1	26.57	16.54	0.295	5.84	44.08	19.87	211.86	25.63
SLU13-1	675	420	7.5	123.6	65.6	97	28,931	1378
SLU13-2	23.62	12.2	0.394	7.74	51.88	26.36	143.18	23.44
SLU13-2	600	310	10	163.9	77.2	128.7	19,552	1260
SLU13-3	19.69	13.98	0.335	7.3	40.79	24.86	159.76	22.86
SLU13-3	500	355	8.5	154.6	60.7	121.4	21,816	1229
SLU13-4	27.56	17.32	0.315	5.98	46.77	20.36	210.64	24.31
SLU13-4	700	440	8	126.6	69.6	99.4	28,765	1307
SLU13-5	27.56	15.75	0.394	7.54	59	25.68	227.1	28.83
SLU13-5	700	400	10	159.7	87.8	125.4	31,012	1550
SLU13-6	19.69	13.39	0.394	8.51	47.51	28.96	162.53	24.27
SLU13-6	500	340	10	180.1	70.7	141.4	22,195	1305
SLU13-7	23.62	14.17	0.394	7.72	51.74	26.28	169.26	23.86
SLU13-7	600	360	10	163.4	77	128.3	23,114	1283
SLU13-8	22.64	14.17	0.394	7.85	50.4	26.71	166.86	23.53
SLU13-8	575	360	10	166.1	75	130.4	22,786	1265
SLU13-9	15.75	11.42	0.453	11.05	49.32	37.58	143.13	25.05
SLU13-9	400	290	11.5	233.8	73.4	183.5	19,546	1347
SLU13-10	23.62	16.06	0.295	6.02	40.32	20.48	191.16	23.79
SLU13-10	600	408	7.5	127.4	60	100	26,105	1279
SLU13-11	23.62	15.75	0.315	6.55	43.88	22.28	195.67	24.83
SLU13-11	600	400	8	138.6	65.3	108.8	26,720	1335
SLU14-1	29.53	17.52	0.315	5.95	49.86	20.26	232.88	26.58
SLU14-1	750	445	8	126.0	74.2	98.9	31,802	1429
SLU14-2	26.57	17.13	0.315	6.29	47.37	21.4	231.32	26.99
SLU14-2	675	435	8	133.1	70.5	104.5	31,589	1451
SLU14-3	29.53	16.06	0.335	6.25	52.35	21.26	212.77	26.49
SLU14-3	750	408	8.5	132.2	77.9	103.8	29,055	1424
SLU14-4	23.62	16.93	0.315	6.44	43.21	21.94	221.68	26.17
SLU14-4	600	430	8	136.4	64.3	107.1	30,273	1407
SLU15-1	26.57	16.54	0.335	6.72	50.6	22.86	233.92	28.27
SLU15-1	675	420	8.5	142.2	75.3	111.6	31,944	1520
SLU15-2	19.69	14.17	0.394	8.68	48.45	29.53	189.08	26.67
SLU15-2	500	360	10	183.7	72.1	144.2	25,820	1434
SLU15-3	23.62	16.61	0.323	6.89	46.16	23.45	238.97	28.76
SLU15-3	600	422	8.2	145.9	68.7	114.5	32,633	1546
SLU16-1	29.53	17.32	0.354	6.78	56.78	23.08	261.13	30.13
SLU16-1	750	440	9	143.6	84.5	112.7	35,660	1620
SLU16-2	15.75	15.55	0.354	9.36	41.8	31.85	232.73	29.91
SLU16-2	400	395	9	198.1	62.2	155.5	31,782	1608
SLU16-3	23.62	16.54	0.354	7.53	50.46	25.62	248.36	30.04
SLU16-3	600	420	9	159.4	75.1	125.1	33,916	1615
SLU16-4	27.56	17.72	0.354	6.99	54.7	23.8	269.39	30.41
SLU16-4	700	450	9	148.0	81.4	116.2	36,787	1635
SLU16-5	25.59	18.9	0.315	6.69	48.58	22.78	296.63	31.38
SLU16-5	650	480	8	141.7	72.3	111.2	40,508	1687
SLU16-6	29.53	16.18	0.366	6.92	57.99	23.55	243.34	30.06
SLU16-6	750	411	9.3	146.5	86.3	115	33,230	1616
SLU16-7	23.62	16.93	0.335	7.28	48.78	24.78	263.11	31.06
SLU16-7	600	430	8.5	154.1	72.6	121	35,930	1670
SLU17-1	29.53	16.93	0.374	7.15	59.87	24.33	271.63	32.07
SLU17-1	750	430	9.5	151.3	89.1	118.8	37,094	1724
SLU17-2	19.69	13.39	0.453	10.44	58.26	35.52	206.92	30.91
SLU17-2	500	340	11.5	220.9	86.7	173.4	28,257	1662
SLU17-3	25.59	19.69	0.315	6.62	48.05	22.53	301.68	30.63
SLU17-3	650	500	8	140.1	71.5	110	41,197	1647
SLU17-4	23.62	18.11	0.335	7.27	48.72	24.74	280.46	30.97
SLU17-4	600	460	8.5	153.9	72.5	120.8	38,299	1665
SLU18-1	29.53	18.11	0.354	7.03	58.86	23.92	304.93	33.67
SLU18-1	750	460	9	148.8	87.6	116.8	41,641	1810
SLU18-2	23.62	18.11	0.354	7.71	51.67	26.26	303.24	33.5
SLU18-2	600	460	9	163.3	76.9	128.2	41,410	1801
SLU18-3	23.62	18.11	0.374	8.04	53.82	27.34	307.6	33.94
SLU18-3	600	460	9.5	170.1	80.1	133.5	42,006	1825
SLU18-4	29.53	17.36	0.366	7.1	59.47	24.17	287.76	33.15
SLU18-4	750	441	9.3	150.3	88.5	118	39,296	1782
SLU18-5	23.62	16.93	0.335	7.28	48.78	24.78	263.11	31.06
SLU18-5	600	430	8.5	154.1	72.6	121	35,930	1670
SLU18-6	23.62	17.13	0.366	8.83	59.2	30.07	305.96	35.73
SLU18-6	600	435	9.3	187.0	88.1	146.8	41,781	1921
SLU18-7	23.62	16.93	0.354	7.71	51.67	26.26	285	33.67
SLU18-7	600	430	9	163.3	76.9	128.2	38,919	1810
SLU20-1	29.53	18.11	0.394	7.78	65.11	26.46	328.91	36.31
SLU20-1	750	460	10	164.6	96.9	129.2	44,916	1952
SLU20-2	23.62	17.72	0.394	8.57	57.45	29.19	307.65	34.73
SLU20-2	600	450	10	181.5	85.5	142.5	42,013	1867
SLU20-3	23.62	17.72	0.413	8.94	59.87	30.42	316.68	35.73
SLU20-3	600	450	10.5	189.2	89.1	148.5	43,245	1921
SLU20-4	29.53	18.9	0.413	8.19	68.61	27.88	362.66	38.37
SLU20-4	750	480	10.5	173.4	102.1	136.1	49,525	2063
SLU20-5	27.56	18.9	0.394	8.47	66.19	28.82	358.17	37.89
SLU20-5	700	480	10	179.2	98.5	140.7	48,911	2037
SLU20-6	25.59	21.26	0.315	7.09	51.47	24.13	399.35	37.55
SLU20-6	650	540	8	150.1	76.6	117.8	54,535	2019
SLU20-7	23.62	18.11	0.374	8.14	54.5	27.69	322.56	35.62
SLU20-7	600	460	9.5	172.2	81.1	135.2	44,048	1915
SLU20-8	23.62	18.5	0.374	8.35	55.91	28.41	349.12	37.72
SLU20-8	600	470	9.5	176.7	83.2	138.7	47,676	2028
SLU21-1	29.53	19.69	0.394	7.99	66.93	27.2	388.62	39.47
SLU21-1	750	500	10	169.2	99.6	132.8	53,069	2122
SLU21-2	23.62	19.69	0.374	8.28	55.44	28.16	368.29	37.4
SLU21-2	600	500	9.5	175.2	82.5	137.5	50,293	2011
SLU21-3	15.75	16.54	0.413	11.69	52.21	39.78	319.79	38.65
SLU21-3	400	420	10.5	247.4	77.7	194.2	43,670	2078
SLU21-4	23.62	18.5	0.362	8.22	55.03	27.96	356	38.46
SLU21-4	600	470	9.2	173.9	81.9	136.5	48,615	2068
SLU22-1	23.62	19.69	0.394	9.03	60.48	30.72	403.94	41.01
SLU22-1	600	500	10	191.1	90	150	55,161	2205
SLU22-2	23.62	19.29	0.374	8.64	57.86	29.39	396.04	41.03
SLU22-2	600	490	9.5	182.8	86.1	143.5	54,083	2206
SLU22-3	23.62	20.08	0.394	9.07	60.75	30.87	436.7	43.49
SLU22-3	600	510	10	192.0	90.4	150.7	59,635	2338
SLU23-1	27.56	19.69	0.413	9.06	70.83	30.82	416.02	42.26
SLU23-1	700	500	10.5	191.7	105.4	150.5	56,811	2272
SLU23-2	25.59	21.26	0.354	8.13	59	27.65	458.7	43.15
SLU23-2	650	540	9	172.0	87.8	135	62,640	2320
SLU23-3	29.53	18.9	0.413	8.52	71.36	29	400.57	42.37
SLU23-3	750	480	10.5	180.4	106.2	141.6	54,701	2278
SLU23-4	23.62	17.72	0.472	10.76	72.1	36.62	376.76	42.52
SLU23-4	600	450	12	227.8	107.3	178.8	51,450	2286
SLU23-5	29.53	19.88	0.394	8.19	68.61	27.88	420.4	42.3
SLU23-5	750	505	10	173.4	102.1	136.1	57,409	2274
SLU25-1	29.53	19.69	0.453	9.48	79.36	32.26	458.14	46.54
SLU25-1	750	500	11.5	200.6	118.1	157.5	62,563	2502
SLU25-2	23.62	19.29	0.453	10.62	71.09	36.13	450.61	46.7
SLU25-2	600	490	11.5	224.7	105.8	176.4	61,535	2511
SLU25-3	19.69	17.72	0.472	12.28	68.54	41.78	411.72	46.5
SLU25-3	500	450	12	259.9	102	204	56,224	2500
SLU25-4	29.53	20.08	0.417	8.86	74.19	30.15	469.29	46.74
SLU25-4	750	510	10.6	187.5	110.4	147.2	64,086	2513
SLU26-1	29.53	19.69	0.472	10.02	83.86	34.08	478.4	48.58
SLU26-1	750	500	12	212.0	124.8	166.4	65,330	2612
SLU26-2	19.69	17.72	0.492	12.8	71.5	43.56	420.73	47.47
SLU26-2	500	450	12.5	271.0	106.4	212.7	57,454	2552
SLU26-3	25.59	21.26	0.394	9.13	66.26	31.07	505.59	47.56
SLU26-3	650	540	10	193.2	98.6	151.7	69,043	2557
SLU26-4	29.53	21.26	0.394	8.42	70.56	28.67	506.67	47.65
SLU26-4	750	540	10	178.3	105	140	69,190	2562
SLU27-1	23.62	19.69	0.453	10.89	72.98	37.07	493.18	50.09
SLU27-1	600	500	11.5	230.6	108.6	181	67,348	2693
SLU27-2	23.62	16.54	0.591	14.02	93.94	47.72	421.98	51.06
SLU27-2	600	420	15	296.8	139.8	233	57,625	2745
SLU28-1	23.62	19.69	0.472	11.57	77.48	39.37	519.75	52.82
SLU28-1	600	500	12	244.8	115.3	192.2	70,976	2840
SLU28-2	23.62	18.9	0.512	12.52	83.93	42.62	496.23	52.51
SLU28-2	600	480	13	265.1	124.9	208.1	67,764	2823
SLU28-3	23.62	22.05	0.402	9.77	65.45	33.24	550.37	49.9
SLU28-3	600	560	10.2	206.8	97.4	162.3	75,158	2683
SLU28-4	23.62	22.24	0.413	10.21	68.41	34.74	591.78	53.2
SLU28-4	600	565	10.5	216.1	101.8	169.6	80,813	2860
SLU28-5	23.62	23.23	0.425	10.66	71.36	36.27	654.38	56.34
SLU28-5	600	590	10.8	225.6	106.2	177.1	89,362	3029
SLU30-1	19.69	19.69	0.512	14.15	79.02	48.17	552.57	56.13
SLU30-1	500	500	13	299.6	117.6	235.2	75,459	3018
SLU32-1	23.62	20.67	0.512	13.04	87.36	44.38	617.39	59.72
SLU32-1	600	525	13	276.1	130	216.7	84,310	3211
SLU32-2	23.62	20.28	0.551	13.89	93	47.25	605.34	59.72
SLU32-2	600	515	14	293.9	138.4	230.7	82,664	3211
SLU32-3	29.53	25.39	0.433	9.8	82.11	33.36	752.72	59.26
SLU32-3	750	645	11	207.5	122.2	162.9	102,790	3186
SLU32-4	27.56	22.05	0.472	11.14	87.02	37.89	665.02	60.36
SLU32-4	700	560	12	235.7	129.5	185	90,815	3245
SLU32-5	26.38	20.47	0.551	13.01	97.3	44.28	604.62	59.05
SLU32-5	670	520	14	275.4	144.8	216.2	82,566	3175
SLU32-6	23.62	23.43	0.441	11.03	73.85	37.52	668.4	57.06
SLU32-6	600	595	11.2	233.4	109.9	183.2	91,276	3068
SLU32-7	23.62	23.62	0.453	11.45	76.67	38.96	704.03	59.59
SLU32-7	600	600	11.5	242.3	114.1	190.2	96,141	3204
SLU32-8	23.62	23.82	0.465	11.87	79.56	40.41	747.65	62.77
SLU32-8	600	605	11.8	251.3	118.4	197.3	102,098	3375
SLU35-1	27.56	22.05	0.512	12.34	96.49	42.01	715.92	64.95
SLU35-1	700	560	13	261.3	143.6	205.1	97,765	3492
SLU35-2	29.53	23.94	0.472	10.92	91.45	37.17	769.41	64.28
SLU35-2	750	608	12	231.2	136.1	181.5	105,070	3456
SLU37-1	29.53	24.02	0.512	12.11	101.47	41.23	836.97	69.68
SLU37-1	750	610	13	256.4	151	201.3	114,296	3746
SLU37-2	27.56	23.62	0.531	12.7	99.32	43.24	818.86	69.38
SLU37-2	700	600	13.5	268.9	147.8	211.1	111,822	3730
SLU40-1	29.53	24.02	0.551	13.15	110.14	44.75	898.29	74.79
SLU40-1	750	610	14	278.3	163.9	218.5	122,670	4021
SLU40-2	27.56	22.83	0.591	14.39	112.49	48.97	847.39	74.21
SLU40-2	700	580	15	304.6	167.4	239.1	115,719	3990
SLU43-1	29.53	24.02	0.591	14.2	118.94	48.34	968.67	80.69
SLU43-1	750	610	15	300.6	177	236	132,280	4338
SLU43-2	29.53	24.21	0.63	14.96	125.26	50.9	978.57	80.82
SLU43-2	750	615	16	316.6	186.4	248.5	133,633	4345
SLU46-1	29.53	24.8	0.63	15.45	129.35	52.58	1067.55	86.08
SLU46-1	750	630	16	327.0	192.5	256.7	145,784	4628
No profiles match your search.

SECTION	WIDTH (w)	HEIGHT (h)	THICKNESS (t)	CROSS SECTIONAL AREA	WEIGHT — Per Pile	WEIGHT — Per Wall	MOMENT OF INERTIA	SECTION MODULUS
	in	in	in	in2/ft	lb/ft	lb/ft2	in4/ft	in3/ft
	mm	mm	mm	cm2/m	kg/m	kg/m2	cm4/m	cm3/m
SLL2-1	27.56	5.75	0.157	2.65	20.7	9.01	14.24	4.95
SLL2-1	700	146	4	56.1	30.8	44	1,945	266
SLL2-2	35.43	6.1	0.157	2.51	25.33	8.56	17.68	5.28
SLL2-2	900	155	4	53.2	37.7	41.8	2,415	284
SLL3-1	27.56	5.79	0.197	3.32	25.94	11.31	17.77	6.14
SLL3-1	700	147	5	70.3	38.6	55.2	2,427	330
SLL3-2	27.56	5.83	0.236	3.97	31.04	13.52	21.29	7.29
SLL3-2	700	148	6	84.1	46.2	66	2,907	392
SLL4-1	23.62	9.82	0.138	2.88	19.29	9.79	43.08	8.74
SLL4-1	600	249.5	3.5	60.9	28.7	47.8	5,883	470
SLL4-2	27.56	5.87	0.276	4.63	36.22	15.77	24.55	8.37
SLL4-2	700	149	7	98.1	53.9	77	3,352	450
SLL5-1	27.56	5.91	0.315	5.3	41.39	18.02	27.93	9.45
SLL5-1	700	150	8	112.1	61.6	88	3,814	508
SLL5-2	27.76	5.98	0.315	5.34	42.07	18.19	28.93	9.65
SLL5-2	705	152	8	113.1	62.6	88.8	3,950	519
SLL5-3	29.53	9.84	0.157	3	25.13	10.22	48.2	9.78
SLL5-3	750	250	4	63.6	37.4	49.9	6,582	526
SLL5-4	23.62	9.84	0.157	3.29	22.04	11.2	49.14	9.99
SLL5-4	600	250	4	69.7	32.8	54.7	6,711	537
SLL6-1	27.56	9.88	0.197	3.9	30.51	13.27	61.57	12.46
SLL6-1	700	251	5	82.5	45.4	64.8	8,408	670
SLL6-2	29.53	9.88	0.197	3.83	32.05	13.03	61.81	12.5
SLL6-2	750	251	5	81.0	47.7	63.6	8,441	672
SLL7-1	36.26	9.92	0.236	4.31	44.28	14.66	72.8	14.68
SLL7-1	921	252	6	91.2	65.9	71.6	9,941	789
SLL7-2	29.53	9.92	0.224	4.43	37.09	15.07	70.33	14.19
SLL7-2	750	252	5.7	93.8	55.2	73.6	9,604	763
SLL8-1	29.53	9.92	0.236	4.63	38.84	15.77	74.24	14.95
SLL8-1	750	252	6	98.1	57.8	77	10,138	804
SLL8-2	29.53	9.92	0.244	4.79	40.12	16.3	76.67	15.44
SLL8-2	750	252	6.2	101.4	59.7	79.6	10,470	830
SLL9-1	29.53	9.96	0.276	5.44	45.56	18.52	86.48	17.35
SLL9-1	750	253	7	115.2	67.8	90.4	11,810	933
SLL9-2	35.43	9.96	0.276	5.08	51.07	17.31	85	17.06
SLL9-2	900	253	7	107.6	76	84.5	11,607	917
SLL9-3	27.56	12.26	0.217	4.7	36.69	15.98	107.16	17.47
SLL9-3	700	311.5	5.5	99.4	54.6	78	14,634	939
SLL9-4	35.43	12.28	0.276	4.39	44.08	14.93	102.01	16.61
SLL9-4	900	312	7	92.9	65.6	72.9	13,931	893
SLL10-1	29.53	10	0.315	6.21	52.01	21.14	97.72	19.53
SLL10-1	750	254	8	131.5	77.4	103.2	13,345	1050
SLL10-2	35.43	10	0.315	5.8	58.33	19.74	96.21	19.23
SLL10-2	900	254	8	122.8	86.8	96.4	13,138	1034
SLL10-3	35.43	12.32	0.276	5.16	51.88	17.55	119.49	19.38
SLL10-3	900	313	7	109.2	77.2	85.7	16,317	1042
SLL11-1	29.53	10.04	0.354	7.1	59.4	24.15	111.72	22.25
SLL11-1	750	255	9	150.2	88.4	117.9	15,256	1196
SLL11-2	35.43	10.04	0.354	6.61	66.46	22.51	109.72	21.85
SLL11-2	900	255	9	140.0	98.9	109.9	14,983	1175
SLL11-3	27.56	12.3	0.256	5.56	43.48	18.93	126.88	20.61
SLL11-3	700	312.5	6.5	117.7	64.7	92.4	17,327	1108
SLL12-1	55.12	12.38	0.335	5.45	85.14	18.54	139.7	22.56
SLL12-1	1400	314.5	8.5	115.3	126.7	90.5	19,077	1213
SLL12-2	60.63	13.74	0.335	5.28	90.78	17.96	160.85	23.42
SLL12-2	1540	349	8.5	111.7	135.1	87.7	21,966	1259
SLL12-2	35.43	12.36	0.315	5.9	59.27	20.07	135	21.84
SLL12-2	900	314	8	124.8	88.2	98	18,436	1174
SLL12-3	35.43	13.7	0.276	5.43	54.56	18.47	154.7	22.58
SLL12-3	900	348	7	114.9	81.2	90.2	21,125	1214
SLL12-4	52.76	12.38	0.335	5.51	82.45	18.76	139.43	22.51
SLL12-4	1340	314.5	8.5	116.7	122.7	91.6	19,040	1210
SLL13-1	55.12	12.42	0.374	6.02	94.08	20.48	153.58	24.74
SLL13-1	1400	315.5	9.5	127.4	140	100	20,973	1330
SLL13-2	60.63	13.76	0.354	5.56	95.55	18.9	168.05	24.4
SLL13-2	1540	349.5	9	117.6	142.2	92.3	22,949	1312
SLL13-3	29.53	13.68	0.276	6.13	51.34	20.87	170.02	24.96
SLL13-3	750	347.5	7	129.8	76.4	101.9	23,218	1342
SLL13-4	35.43	13.74	0.315	6.2	62.29	21.1	175.34	25.52
SLL13-4	900	349	8	131.2	92.7	103	23,944	1372
SLL13-5	52.76	12.42	0.374	6.09	91.12	20.73	153.16	24.66
SLL13-5	1340	315.5	9.5	128.9	135.6	101.2	20,916	1326
SLL14-1	55.12	12.44	0.394	6.3	98.51	21.44	160.51	25.8
SLL14-1	1400	316	10	133.4	146.6	104.7	21,919	1387
SLL14-2	55.12	12.46	0.413	6.61	103.28	22.49	166.07	26.64
SLL14-2	1400	316.5	10.5	139.9	153.7	109.8	22,678	1432
SLL14-3	60.63	13.78	0.374	5.83	100.32	19.85	174.63	25.33
SLL14-3	1540	350	9.5	123.4	149.3	96.9	23,847	1362
SLL14-4	60.63	13.8	0.394	6.12	105.3	20.83	182.9	26.5
SLL14-4	1540	350.5	10	129.6	156.7	101.7	24,977	1425
SLL14-5	29.53	13.7	0.295	6.5	54.43	22.12	179.62	26.3
SLL14-5	750	348	7.5	137.6	81	108	24,529	1414
SLL14-6	52.76	12.46	0.413	6.68	99.99	22.73	165.45	26.56
SLL14-6	1340	316.5	10.5	141.4	148.8	111	22,593	1428
SLL14-7	35.43	12.44	0.394	7.39	74.25	25.15	168.26	27.04
SLL14-7	900	316	10	156.4	110.5	122.8	22,978	1454
SLL15-1	29.53	13.72	0.315	6.95	58.19	23.66	192.27	28.12
SLL15-1	750	348.5	8	147.1	86.6	115.5	26,256	1512
SLL15-2	35.43	13.78	0.354	6.97	70.09	23.74	195.4	28.36
SLL15-2	900	350	9	147.6	104.3	115.9	26,683	1525
SLL16-1	49.61	14.92	0.335	6.16	86.75	20.97	229.4	30.75
SLL16-1	1260	379	8.5	130.4	129.1	102.4	31,326	1653
SLL16-2	29.53	13.74	0.335	7.47	62.56	25.42	205.23	30
SLL16-2	750	349	8.5	158.1	93.1	124.1	28,026	1613
SLL17-1	55.12	16.67	0.335	5.95	93.07	20.26	270.61	32.46
SLL17-1	1400	423.5	8.5	126.0	138.5	98.9	36,954	1745
SLL17-2	29.53	13.76	0.354	7.91	66.19	26.91	216.89	31.66
SLL17-2	750	349.5	9	167.4	98.5	131.4	29,618	1702
SLL18-1	49.61	14.96	0.374	6.83	96.02	23.23	253.8	33.91
SLL18-1	1260	380	9.5	144.5	142.9	113.4	34,659	1823
SLL18-2	55.12	16.69	0.354	6.26	97.77	21.28	279.98	33.52
SLL18-2	1400	424	9	132.4	145.5	103.9	38,234	1802
SLL18-3	29.53	13.78	0.374	8.35	69.88	28.41	229.24	33.44
SLL18-3	750	350	9.5	176.7	104	138.7	31,305	1798
SLL18-4	62.99	17.68	0.335	5.8	103.62	19.72	304.12	34.41
SLL18-4	1600	449	8.5	122.7	154.2	96.3	41,530	1850
SLL19-1	49.61	15	0.394	7.14	100.46	24.31	263.15	35.08
SLL19-1	1260	381	10	151.2	149.5	118.7	35,936	1886
SLL19-2	55.12	16.71	0.374	6.59	102.88	22.41	295.13	35.3
SLL19-2	1400	424.5	9.5	139.4	153.1	109.4	40,303	1898
SLL19-3	29.53	13.8	0.394	8.79	73.58	29.9	242.02	35.21
SLL19-3	750	350.5	10	186.0	109.5	146	33,050	1893
SLL20-1	49.61	15.02	0.413	7.64	107.58	26.01	286.07	38.07
SLL20-1	1260	381.5	10.5	161.8	160.1	127	39,065	2047
SLL20-2	55.12	16.73	0.394	6.86	107.25	23.35	303.37	36.23
SLL20-2	1400	425	10	145.2	159.6	114	41,428	1948
SLL20-3	62.99	17.72	0.374	6.47	115.58	22.02	339.31	38.3
SLL20-3	1600	450	9.5	136.9	172	107.5	46,336	2059
SLL22-1	55.12	18.7	0.394	7.09	110.87	24.13	381.14	40.75
SLL22-1	1400	475	10	150.1	165	117.8	52,048	2191
SLL22-2	62.99	17.76	0.413	7.08	126.46	24.09	360.38	40.59
SLL22-2	1600	451	10.5	149.8	188.2	117.6	49,213	2182
SLL23-1	62.99	18.68	0.374	6.81	121.63	23.16	407.52	43.62
SLL23-1	1600	474.5	9.5	144.1	181	113.1	55,650	2345
SLL24-1	49.61	16.78	0.441	8.42	118.47	28.65	381.88	45.5
SLL24-1	1260	426.2	11.2	178.2	176.3	139.9	52,149	2446
SLL24-2	55.12	18.75	0.441	7.98	124.85	27.18	428.47	45.7
SLL24-2	1400	476.2	11.2	169.0	185.8	132.7	58,512	2457
SLL25-1	62.99	18.72	0.413	7.5	133.99	25.52	440.89	47.1
SLL25-1	1600	475.5	10.5	158.7	199.4	124.6	60,208	2532
SLL26-1	49.61	16.82	0.48	9.17	129.02	31.21	410.01	48.75
SLL26-1	1260	427.2	12.2	194.1	192	152.4	55,990	2621
SLL26-2	55.12	18.79	0.48	8.68	135.67	29.53	454.35	48.38
SLL26-2	1400	477.2	12.2	183.7	201.9	144.2	62,045	2601
SLL27-1	62.99	18.76	0.453	8.15	145.55	27.73	478.92	51.06
SLL27-1	1600	476.5	11.5	172.5	216.6	135.4	65,401	2745
SLL28-1	49.61	16.86	0.52	10	140.71	34.04	440.43	52.23
SLL28-1	1260	428.2	13.2	211.7	209.4	166.2	60,145	2808
SLL28-2	55.12	18.83	0.52	9.44	147.63	32.14	484.71	51.48
SLL28-2	1400	478.2	13.2	199.9	219.7	156.9	66,192	2768
SLL28-3	59.06	20.05	0.402	7.88	131.97	26.81	531.68	53.03
SLL28-3	1500	509.2	10.2	166.8	196.4	130.9	72,606	2851
SLL29-1	55.12	20.09	0.441	8.49	132.71	28.88	542.3	53.98
SLL29-1	1400	510.2	11.2	179.6	197.5	141	74,056	2902
SLL30-1	59.06	20.09	0.441	8.46	141.58	28.78	563.26	56.08
SLL30-1	1500	510.2	11.2	179.0	210.7	140.5	76,918	3015
SLL31-1	55.12	20.12	0.472	9.15	142.99	31.13	583.87	58.03
SLL31-1	1400	511	12	193.6	212.8	152	79,733	3120
SLL32-1	55.12	20.14	0.492	9.54	149.11	32.46	592.46	58.83
SLL32-1	1400	511.5	12.5	201.9	221.9	158.5	80,906	3163
SLL32-2	59.06	20.12	0.472	9.1	152.47	30.99	606.13	60.25
SLL32-2	1500	511	12	192.7	226.9	151.3	82,772	3239
SLL33-1	55.12	20.16	0.512	9.89	154.55	33.65	619.92	61.49
SLL33-1	1400	512	13	209.3	230	164.3	84,655	3306
SLL40-1	45.67	21.63	0.531	11.78	152.54	40.08	817.61	75.59
SLL40-1	1160	549.5	13.5	249.3	227	195.7	111,652	4064
SLL42-1	45.67	21.65	0.551	12.25	158.65	41.68	848.79	78.4
SLL42-1	1160	550	14	259.2	236.1	203.5	115,910	4215
SLL44-1	45.67	21.67	0.571	12.99	168.19	44.2	891.9	82.21
SLL44-1	1160	550.5	14.5	274.9	250.3	215.8	121,797	4420
SLL46-1	45.67	21.69	0.591	13.47	174.58	45.86	928.45	85.6
SLL46-1	1160	551	15	285.2	259.8	223.9	126,788	4602
No profiles match your search.

SECTION	WIDTH (w)	HEIGHT (h)	THICKNESS — Flange (tf)	THICKNESS — Web (tw)	CROSS SECTIONAL AREA	WEIGHT — Per Pile	WEIGHT — Per Wall	ELASTIC SECTION MODULUS	MOMENT OF INERTIA	COATING AREA *(both side per pile)
	in	in	in	in	in2/ft	lb/ft	lb/ft2	in3/ft	in4/ft	ft2/ft
	mm	mm	mm	mm	cm2/m	kg/m	kg/m2	cm3/m	cm4/m	m2/m
ESC-CRZ6-600	23.62	9.84	0.252	0.252	4.02	26.88	13.66	11.25	55.38	5.22
ESC-CRZ6-600	600	250	6.4	6.4	85.0	40.0	66.7	605	7,562	1.59
ESC-CRZ6-800	31.5	11.81	0.236	0.236	3.65	32.59	12.7	11.87	69.6	6.3
ESC-CRZ6-800	800	300	6.0	6.0	77.2	48.5	62.0	638	9,505	1.92
ESC-CRZ7-725	28.54	11.81	0.236	0.236	3.74	30.24	12.37	13.58	78.55	5.84
ESC-CRZ7-725	725	300	6.0	6.0	79.1	45.0	60.4	730	10,727	1.78
ESC-CRZ8-725	28.54	10.67	0.276	0.276	4.32	34.94	14.69	15.74	84.51	5.79
ESC-CRZ8-725	725	271	7.0	7.0	91.4	52.0	71.7	846	11,540	1.76
ESC-CRZ11-812	32.0	12.2	0.374	0.374	5.89	53.46	20.05	20.11	122.69	6.99
ESC-CRZ11-812	812.8	310	9.5	9.5	124.7	79.55	97.9	1,081	16,755	2.13
ESC-CRZ12-770	30.31	14.17	0.343	0.343	5.67	48.78	19.31	23.12	164.32	6.99
ESC-CRZ12-770	770	360	8.7	8.7	120.1	72.6	94.3	1,243	22,439	2.13
ESC-CRZ13-770	30.31	14.17	0.354	0.354	5.89	50.6	20.03	24.03	170.47	6.99
ESC-CRZ13-770	770	360	9.0	9.0	124.6	75.3	97.8	1,292	23,279	2.13
ESC-CRZ14	30.31	13.39	0.382	0.382	6.34	54.5	21.57	25.78	172.79	6.99
ESC-CRZ14	770	340	9.7	9.7	134.1	81.1	105.3	1,386	23,596	2.13
ESC-CRZ14-770	30.31	14.17	0.374	0.374	6.19	53.29	21.08	25.24	178.98	6.99
ESC-CRZ14-770	770	360	9.5	9.5	131.1	79.3	102.9	1,357	24,441	2.13
ESC-CRZ14-770-10.0	30.31	13.58	0.394	0.394	6.54	56.27	22.28	26.36	178.99	7.05
ESC-CRZ14-770-10.0	770	345	10.0	10.0	138.5	83.74	108.8	1,417	24,443	2.15
ESC-CRZ15-750	29.53	18.48	0.305	0.305	5.31	44.52	18.09	28.33	261.81	7.18
ESC-CRZ15-750	750	469.5	7.75	7.75	112.5	66.25	88.34	1,523	35,753	2.19
ESC-CRZ17-700-8.0	27.56	16.46	0.315	0.315	5.94	46.43	18.78	30.89	254.15	6.73
ESC-CRZ17-700-8.0	700	418	8.0	8.0	125.8	69.1	91.7	1,661	34,706	2.05
ESC-CRZ17-700-8.7	27.56	17.91	0.343	0.343	6.26	48.92	21.3	32.27	289.29	6.99
ESC-CRZ17-700-8.7	700	455	8.7	8.7	132.5	72.8	104.0	1,735	39,505	2.13
ESC-CRZ18-700	27.56	17.72	0.358	0.358	6.54	51.14	22.26	34.22	304.15	6.99
ESC-CRZ18-700	700	450	9.1	9.1	138.5	76.1	108.7	1,840	41,534	2.13
ESC-CRZ18-850	33.46	18.5	0.374	0.374	6.42	60.88	21.83	33.91	314.04	7.43
ESC-CRZ18-850	850	470	9.5	9.5	135.8	90.6	106.6	1,823	42,885	2.27
ESC-CRZ19-700	27.56	16.54	0.382	0.382	6.97	54.5	23.73	35.12	290.53	6.99
ESC-CRZ19-700	700	420	9.7	9.7	147.6	81.1	115.85	1,888	39,675	2.13
ESC-CRZ20-700	27.56	16.18	0.402	0.402	7.34	57.37	24.99	36.33	294.39	6.99
ESC-CRZ20-700	700	411	10.2	10.2	155.4	85.37	122.0	1,953	40,202	2.13
ESC-CRZ20-850	33.46	18.5	0.394	0.394	6.8	64.51	23.12	37.2	343.16	7.0
ESC-CRZ20-850	850	470	10.0	10.0	143.9	96.0	112.9	2,000	46,862	2.28
ESC-CRZ21-660	26.0	18.11	0.374	0.374	7.25	53.46	24.67	39.36	356.54	6.99
ESC-CRZ21-660	660.4	460	9.5	9.5	153.4	79.55	120.45	2,116	48,689	2.13
ESC-CRZ21-700	27.56	16.22	0.425	0.425	7.8	61.0	26.56	38.8	314.98	7.02
ESC-CRZ21-700	700	412	10.8	10.8	165.2	90.78	129.7	2,086	43,013	2.14
ESC-CRZ22-559	22.01	9.84	0.374	0.374	6.46	40.32	22.0	18.62	91.79	5.28
ESC-CRZ22-559	559	250	9.5	9.5	136.8	60	107.4	1,001	12,535	1.61
ESC-CRZ24-609	24.0	19.69	0.374	0.374	7.85	53.46	26.73	46.0	452.87	6.99
ESC-CRZ24-609	609.6	500	9.5	9.5	166.2	79.55	130.49	2,473	61,843	2.13
ESC-CRZ24-700	27.56	18.5	0.425	0.425	8.23	64.31	28.0	45.27	418.94	7.41
ESC-CRZ24-700	700	470	10.8	10.8	174.1	95.7	136.7	2,434	57,210	2.26
ESC-CRZ26-700	27.56	19.29	0.469	0.469	9.08	70.96	30.89	49.89	481.45	7.41
ESC-CRZ26-700	700	490	11.9	11.9	192.1	105.6	150.8	2,682	65,746	2.26
ESC-CRZ26-711	28.0	17.32	0.48	0.48	9.26	73.55	31.52	49.55	429.3	7.51
ESC-CRZ26-711	711.2	440	12.2	12.2	196.1	109.46	153.9	2,664	58,624	2.29
ESC-CRZ27-457	17.99	12.99	0.374	0.374	7.9	40.32	26.89	30.3	196.93	5.28
ESC-CRZ27-457	457	330	9.5	9.5	167.3	60	131.3	1,629	26,893	1.61
ESC-CRZ28-686	27.0	17.72	0.48	0.48	9.6	73.55	32.69	53.23	471.64	7.51
ESC-CRZ28-686	685.8	450	12.2	12.2	203.3	109.46	159.6	2,862	64,407	2.29
ESC-CRZ28-700	27.56	18.5	0.512	0.512	9.91	77.48	33.73	52.68	487.45	7.41
ESC-CRZ28-700	700	470	13	13	209.8	115.3	164.7	2,832	66,565	2.26
ESC-CRZ31-660	26.0	18.5	0.48	0.48	9.97	73.55	33.95	57.51	532.23	7.51
ESC-CRZ31-660	660.4	470	12.2	12.2	211.1	109.46	165.75	3,092	72,681	2.29
ESC-CRZ33-635	25.0	19.29	0.48	0.48	10.37	73.55	35.31	61.94	597.6	7.51
ESC-CRZ33-635	635	490	12.2	12.2	219.6	109.46	172.38	3,330	81,607	2.29
ESC-CRZ33-700	27.56	19.69	0.472	0.472	6.6	51.54	33.39	61.1	607.28	8.1
ESC-CRZ33-700	700	500	12.0	12.0	139.6	76.7	163.0	3,285	82,929	2.45
ESC-CRZ36-700N	27.56	22.05	0.48	0.48	10.12	79.16	34.45	67.13	740.12	8.07
ESC-CRZ36-700N	700	560	12.2	12.2	214.3	117.8	168.2	3,609	101,070	2.46
ESC-CRZ38-700	27.56	22.44	0.52	0.52	10.95	85.6	37.28	71.83	806.6	8.07
ESC-CRZ38-700	700	570	13.2	13.2	231.8	127.4	182	3,862	110,154	2.46
ESC-CRZ40-700N	27.56	22.83	0.543	0.543	11.45	89.5	38.98	74.64	853.0	8.07
ESC-CRZ40-700N	700	580	13.8	13.8	242.4	133.2	190.3	4,013	116,486	2.46
ESC-CRZ42-700N	27.56	22.83	0.575	0.575	12.11	94.7	41.23	78.34	895.0	8.07
ESC-CRZ42-700N	700	580	14.6	14.6	256.4	140.9	201.3	4,212	122,215	2.46
ESC-CRZ44-700N	27.56	21.26	0.567	0.567	12.83	100.3	43.65	82.66	879.6	8.66
ESC-CRZ44-700N	700	540	14.4	14.4	271.5	149.2	213.1	4,444	120,120	2.64
ESC-CRZ46-700N	27.56	22.83	0.571	0.571	12.67	99.0	43.11	85.99	981.82	8.6
ESC-CRZ46-700N	700	580	14.5	14.5	268.2	147.35	210.5	4,623	134,076	2.62
ESC-CRZ48-700	27.56	23.23	0.591	0.591	13.44	105.0	45.71	89.88	1046.04	8.79
ESC-CRZ48-700	700	590	15.0	15.0	284.4	156.27	223.2	4,832	142,846	2.68
ESC-CRZ48-580-14.5	22.83	21.26	0.571	0.571	14.43	93.5	49.11	89.99	957.54	8.1
ESC-CRZ48-580-14.5	580	540	14.5	14.5	305.5	139.1	239.8	4,838	130,760	2.47
ESC-CRZ50-580-14.0	22.83	22.83	0.551	0.551	13.92	90.1	47.37	93.69	1025.23	8.1
ESC-CRZ50-580-14.0	580	580	14.0	14.0	294.6	134.13	231.3	5,037	140,004	2.47
ESC-CRZ50-700	27.56	22.05	0.63	0.63	14.1	110.2	48.0	93.37	1029.43	8.56
ESC-CRZ50-700	700	560	16.0	16.0	298.5	164.0	234.3	5,020	140,578	2.61
ESC-CRZ52-700	27.56	21.65	0.63	0.63	14.42	112.69	49.07	97.2	1052.6	8.86
ESC-CRZ52-700	700	550	16.0	16.0	305.2	167.7	239.6	5,226	143,742	2.7
No profiles match your search.

SECTION	WIDTH (w)	HEIGHT (h)	THICKNESS (t)	CROSS SECTIONAL AREA	WEIGHT — Per Pile	WEIGHT — Per Wall	ELASTIC SECTION MODULUS	MOMENT OF INERTIA	COATING AREA *(both side per pile)
	in	in	in	in2/ft	lb/ft	lb/ft2	in3/ft	in4/ft	ft2/ft
	mm	mm	mm	cm2/m	kg/m	kg/m2	cm3/m	cm4/m	m2/m
ESC-CRW3A	27.56	5.75	0.16	2.64	20.7	9.01	4.93	14.2	6.46
ESC-CRW3A	700	146	4	56	30.8	44	265	1,945	1.97
ESC-CRW3B	27.56	5.79	0.2	3.32	25.94	11.3	6.1	17.64	6.5
ESC-CRW3B	700	147	5	70.3	38.6	55.2	328	2,417	1.98
ESC-CRW4A	27.56	5.83	0.24	3.97	31.05	13.52	7.29	21.24	6.46
ESC-CRW4A	700	148	6	84.1	46.2	66	392	2,910	1.97
ESC-CRW4B	27.56	5.87	0.28	4.57	35.75	15.56	8.31	24.71	6.4
ESC-CRW4B	700	149	7	96.8	53.2	76	447	3,385	1.95
ESC-CRW5A	27.56	5.91	0.31	5.29	41.4	18.02	9.45	28.27	6.5
ESC-CRW5A	700	150	8	112	61.6	88	508	3,872	1.98
ESC-CRW6	23.62	9.88	0.2	4.27	28.61	14.54	12.63	63.84	11.45
ESC-CRW6	600	251	5.2	90.4	42.58	70.97	679	8,718	3.49
ESC-CRW7	61.42	13.39	0.24	3.63	63.3	12.37	13.76	97.82	13.32
ESC-CRW7	1560	340	6	76.9	94.2	60.4	740	13,400	4.06
ESC-CRW9	55.91	16.02	0.24	3.99	63.3	13.58	18.23	157.24	13.29
ESC-CRW9	1420	407	6	84.5	94.2	66.3	980	21,540	4.05
ESC-CRW10	53.15	17.72	0.2	3.49	52.75	11.9	18.04	167.61	13.29
ESC-CRW10	1350	450	5	74	78.5	58.1	970	22,960	4.05
ESC-CRW11	52.36	17.72	0.24	4.26	63.3	14.5	19.72	198.12	13.25
ESC-CRW11	1330	450	6	90.2	94.2	70.8	1,060	27,140	4.04
ESC-CRW12A	50	17.72	0.24	4.46	63.3	15.2	23.25	219	13.29
ESC-CRW12A	1270	450	6	94.5	94.2	74.2	1,250	30,000	4.05
ESC-CRW12B	56.3	15.39	0.33	5.61	89.71	19.11	23.44	200.02	13.29
ESC-CRW12B	1430	391	8.5	118.9	133.5	93.3	1,260	27,400	4.05
ESC-CRW13	46.65	19.69	0.26	5.18	68.61	17.63	25.85	218.34	13.29
ESC-CRW13	1185	500	6.5	109.7	102.1	86.1	1,390	29,910	4.05
ESC-CRW14A	47.05	18.94	0.28	5.53	73.85	18.84	27.16	294.99	13.29
ESC-CRW14A	1195	481	7	117.2	109.9	92	1,460	40,410	4.05
ESC-CRW14B	55.12	14.84	0.37	6.41	100.26	21.81	26.41	219.8	13.29
ESC-CRW14B	1400	377	9.5	135.7	149.2	106.5	1,420	30,110	4.05
ESC-CRW15	50.39	17.72	0.31	5.9	84.4	20.09	27.9	277.11	13.25
ESC-CRW15	1280	450	8	125	125.6	98.1	1,500	37,960	4.04
ESC-CRW16A	44.49	19.69	0.28	5.85	73.85	19.91	29.39	335.14	13.29
ESC-CRW16A	1130	500	7	123.9	109.9	97.2	1,580	45,910	4.05
ESC-CRW17	51.97	17.72	0.35	6.43	94.95	21.91	31.99	303.75	13.29
ESC-CRW17	1320	450	9	136.3	141.3	107	1,720	41,610	4.05
ESC-CRW118	49.02	19.33	0.31	5.92	82.4	20.17	32.74	399.12	12.86
ESC-CRW118	1245	491	8	125.5	122.62	98.5	1,760	54,674	3.92
ESC-CRW19	49.02	19.33	0.33	6.32	87.87	21.5	34.97	425.77	12.93
ESC-CRW19	1245	491	8.5	133.8	130.76	105	1,880	58,325	3.94
ESC-CRW20	49.02	19.37	0.35	6.71	93.37	22.86	37.2	452.57	12.96
ESC-CRW20	1245	492	9	142.2	138.95	111.6	2,000	61,996	3.95
ESC-CRW21	49.02	19.37	0.37	7.11	98.91	24.21	39.43	479.52	13.02
ESC-CRW21	1245	492	9.5	150.6	147.19	118.2	2,120	65,687	3.97
ESC-CRW22	49.02	19.41	0.39	7.51	104.49	25.58	41.85	506.6	13.06
ESC-CRW22	1245	493	10	159.1	155.49	124.9	2,250	69,397	3.98
ESC-CRW24	49.21	19.41	0.41	7.88	110.1	26.85	43.9	533.81	13.12
ESC-CRW24	1250	493	10.5	167	163.84	131.1	2,360	73,125	4
ESC-CRW25	49.21	19.45	0.43	8.28	115.75	28.22	46.31	561.16	13.16
ESC-CRW25	1250	494	11	175.5	172.25	137.8	2,490	76,871	4.01
ESC-CRW26	49.21	19.45	0.45	8.69	121.44	29.61	48.55	588.61	13.22
ESC-CRW26	1250	494	11.5	184.2	180.72	144.6	2,610	80,632	4.03
ESC-CRW27	49.21	19.49	0.47	9.1	127.17	31.01	50.59	616.19	13.25
ESC-CRW27	1250	495	12	192.9	189.24	151.4	2,720	84,409	4.04
ESC-CRW28	49.41	19.49	0.49	9.48	132.93	32.28	52.45	643.86	13.32
ESC-CRW28	1255	495	12.5	200.8	197.81	157.6	2,820	88,200	4.06
ESC-CRW29	49.41	19.53	0.51	9.89	138.73	33.69	54.68	671.64	13.35
ESC-CRW29	1255	496	13	209.5	206.44	164.5	2,940	92,005	4.07
ESC-CRW30	49.41	19.53	0.53	10.31	144.57	35.1	56.73	699.5	13.42
ESC-CRW30	1255	496	13.5	218.4	215.13	171.4	3,050	95,822	4.09
ESC-CRW31	49.41	19.57	0.55	10.72	150.44	36.54	58.78	727.46	13.45
ESC-CRW31	1255	497	14	227.2	223.87	178.4	3,160	99,652	4.1
ESC-CRW32	49.61	19.57	0.57	11.1	156.35	37.83	60.64	755.51	13.52
ESC-CRW32	1260	497	14.5	235.2	232.66	184.7	3,260	103,494	4.12
ESC-CRW34	49.61	19.61	0.59	11.53	162.29	39.26	62.68	783.63	13.55
ESC-CRW34	1260	498	15	244.2	241.51	191.7	3,370	107,346	4.13
ESC-CRW35	49.61	19.61	0.611	39.25 [?]	168.3	40.7	65	812	13.62
ESC-CRW35	1260	498	15.5	253.2	250.42	198.7	3,480	111,208	4.15
ESC-CRW36	49.61	19.65	0.63	12.38	174.3	42.17	66.77	840.08	13.65
ESC-CRW36	1260	499	16	262.2	259.38	205.9	3,590	115,079	4.16
No profiles match your search.

Steel Grades — Cold-Rolled & Cold-Formed Sheet Piles

Mechanical properties and chemical composition by ASTM standard. Not affected by the Imperial / Metric switch above.

CLASSIFICATION		MECHANICAL PROPERTIES						CHEMICAL COMPOSITION % (MAX)
		MINIMUM YIELD STRENGTH		ULTIMATE TENSILE STRENGTH		MINIMUM ELONGATION	IMPACT STRENGTH (CHARPY)	C	Si	Mn	P	S
		ksi	MPa	ksi	MPa	%	IMPACT STRENGTH (CHARPY)	C	Si	Mn	P	S
ASTM A36-14	A36	36	250	58-80	400-550	23	-	0.26	0.40	-	0.040	0.050
ASTM A572-2013a	A572 Gr.42	42	290	≥ 60	≥415	20	-	0.21	0.40	1.35	0.040	0.050
ASTM A572-2013a	A572 Gr.50	50	345	≥ 65	≥450	18	-	0.23	0.40	1.30	0.040	0.050
ASTM A572-2013a	A572 Gr.55	55	380	≥ 60	≥485	17	-	0.25	0.40	1.35	0.030	0.030
ASTM A572-2013a	A572 Gr.60	60	413	≥ 75	≥517	16	-	0.26	0.40	1.35	0.040	0.050
ASTM A572-2013a	A572 Gr.65	65	450	≥ 80	≥550	15	-	0.23	0.40	1.35	0.030	0.030
ASTM A588	A588 Gr.50A	50	345	≥ 70	≥485	18	-	0.19	0.30-0.65	0.80-1.25	0.040	0.050
ASTM A588	A588 Gr.50B	50	345	≥ 70	≥485	18	-	0.20	0.15-0.50	0.75-1.35	0.040	0.050
ASTM A690	A690 Gr.50	50	345	≥ 70	>485	21	-	0.22	0.40	0.60-0.90	0.08-0.15	0.040
ASTM A871	A871 Gr.60 Type I	60	415	≥ 75	>520	16	15ft-lb [20J] @ 0°F [-18°C] for t<=0.5" [12mm]	0.19	0.30-0.65	0.8-1.35	0.030	0.030
ASTM A871	A871 Gr.60 Type II	60	415	≥ 75	>520	16	—	0.20	0.15-0.50	0.75-1.35	0.030	0.030
ASTM A871	A871 Gr.60 Type IV	60	415	≥ 75	>520	16	—	0.17	0.25-0.50	0.50-1.20	0.030	0.030
ASTM A871	A871 Gr.65 Type I	65	450	≥ 80	>550	15	15ft-lb [20J] @ 0°F [-18°C] for t<=0.5" [12mm]	0.19	0.30-0.65	0.80-1.35	0.030	0.030
ASTM A871	A871 Gr.65 Type II	65	450	≥ 80	>550	15	—	0.20	0.15-0.50	0.75-1.35	0.030	0.030
ASTM A871	A871 Gr.65 Type IV	65	450	≥ 80	>550	15	—	0.17	0.25-0.50	0.50-1.20	0.030	0.030
ASTM A1018	A1018 Gr.50 Class1	50	340	≥ 65	>450	16	-	0.23	-	1.50	0.040	0.040
ASTM A1018	A1018 Gr.50 Class2	50	340	≥ 60	>410	16	-	0.15	-	1.50	0.040	0.040
ASTM A1018	A1018 Gr.60 Class1	60	410	≥ 75	>520	14	-	0.26	-	1.50	0.040	0.040
ASTM A1018	A1018 Gr.60 Class2	60	410	≥ 70	>480	14	-	0.15	-	1.50	0.040	0.040
ASTM A1018	A1018 Gr.70 Class1	70	480	≥ 85	>590	10	-	0.26	-	1.65	0.040	0.040
ASTM A1018	A1018 Gr.70 Class2	70	480	≥ 80	>550	10	-	0.15	-	1.65	0.040	0.040
ASTM A1018	A1018 Gr.80	80	550	≥ 90	>620	10	-	0.15	-	1.65	0.025	0.035

Steel sheet piles · Quantity calculator

How much steel does your wall need?
Piles, tonnage and trucks — in 30 seconds.

Pick a profile, enter your wall length and pile length. You get pile count, wall area, total weight and freight — in imperial and metric. Quantities only: profile selection for your loads and soils is a separate conversation, and it's free.

Find a profile Profile

Wall length (ft) Pile length (ft)

Your steel price — optional ($/lb)

Don't have current pricing? That's the point of the button below.

Your takeoff

Quantity	Imperial	Metric

Screening-level quantities from the published section data above. Pile count is rounded up to whole piles. Freight assumes ~48,000 lb legal payload per flatbed; actual loading depends on pile length and permits. This tool does not verify that the selected profile carries your wall — send me the retained height and soil/water conditions and I'll check it, free.

Send me a quote for these quantities Free wall design review



Equivalent strength, lower cost

Routinely used as an effective, equivalent alternative to hot-rolled — frequently 20%+ lower cost with no compromise in design, quality or structural capacity, when specified to matching section properties.



Cut to your project

Continuous cold-rolled production means any length (up to ~115 ft) and project-specific profiles. Less cut-off waste, fewer field splices, leaner lead times and lower stock requirements. Produced to BS EN 10249.

Flexible alignment in the field

Cold-formed interlocks swing up to ~25°, so curved walls and repositioning around buried obstructions are straightforward without custom corner piles.



Grades matched to the environment

Strength grades ASTM A572 and A1018 (Gr.50–80); weathering steels A588 and A871 for atmospheric and soil exposure; A690 ‘Mariner’ steel for seawater splash and tidal zones. The grade is matched to your soil and water so the wall lasts as designed — neither over- nor under-specified.



When hot-rolled is the smarter call — and I’ll say so

For walls that must be genuinely low-permeability (cut-offs, deep cofferdams below the water table) or driven through very hard or obstructed ground, the tighter hot-rolled interlock earns its premium. For most retaining, shoring and budget cofferdam work above that threshold, cold-rolled gives you the equivalent wall for less. Straight answer, every time.

What you can build with cold-rolled sheet piles

Temporary excavation support

Trench shoring

Retaining walls

Cut-off & basement walls

Slope stabilization

Underground parking

Water-control structures

Budget cofferdams

Bulkheads

Permanent walls (weathering steel)

Who benefits most

Built for the people who specify,
install, and resell earth-retention.

Design engineers & EORs specifying deep foundations and earth-retention
Shoring, marine & foundation contractors who need the wall on time and on budget
DOT, port and infrastructure owners who need it to pass review, meet Buy America, and last
Distributors & regional resellers of piling materials — supply + engineering they can resell
Mining & industrial site teams working pit walls, shafts and containment

Why source through me

Independent & neutral. I’m not tied to one mill. I match the profile and the source to your project — not to a warehouse.
Direct-from-mill pricing. Domestic and international mills, competitive pricing without the middle markup.
Buy America / BABA navigation. On federally funded work I flag which profiles qualify and route you to domestic-melt-and-manufactured sections — so the wall doesn’t fail compliance after the spec is set.
Free engineering & design support. Wall design, profile selection and load calcs at no extra cost.
Full system, one source. Sheet piles + tie rods, walings, corrosion protection and accessories. No interface gaps.
A real market read. I’ll tell you straight when hot rolled vs cold rolled is the smarter call, and what’s realistic on grade, length and lead time.
Engineer to engineer. I’m a geotechnical engineer. You get someone who reads the spec and the tender — not just a price.

Next step

Get the right wall on
your next project.

Send your section, retained height and soil/water conditions, and I’ll come back with a profile recommendation, a quote, and — if you want it — a free wall design review.

Request a Quote

Same Strength.
Often 20% Less Steel Cost.

“The budget came in over — and steel is the biggest line item.”

“We only need it for temporary works — but we’re quoted permanent-grade pricing.”

“Standard lengths mean waste and field splicing.”

“Is cheaper steel actually weaker?”

“Corrosion in seawater or aggressive soil — will it last?”

“One supplier for piles, another for accessories.”

Cold-Rolled Sheet Piles

Cold-Rolled Profile Data

Steel Grades — Cold-Rolled & Cold-Formed Sheet Piles

Equivalent strength, lower cost

Cut to your project

Flexible alignment in the field

Grades matched to the environment

When hot-rolled is the smarter call — and I’ll say so

Geo Civil Consulting

Work With Me

Marketplace

Insights & Company

Same Strength.Often 20% Less Steel Cost.

“The budget came in over — and steel is the biggest line item.”

“We only need it for temporary works — but we’re quoted permanent-grade pricing.”

“Standard lengths mean waste and field splicing.”

“Is cheaper steel actually weaker?”

“Corrosion in seawater or aggressive soil — will it last?”

“One supplier for piles, another for accessories.”

Cold-Rolled Sheet Piles

Cold-Rolled Profile Data

Steel Grades — Cold-Rolled & Cold-Formed Sheet Piles

Equivalent strength, lower cost

Cut to your project

Flexible alignment in the field

Grades matched to the environment

When hot-rolled is the smarter call — and I’ll say so

Same Strength.
Often 20% Less Steel Cost.
